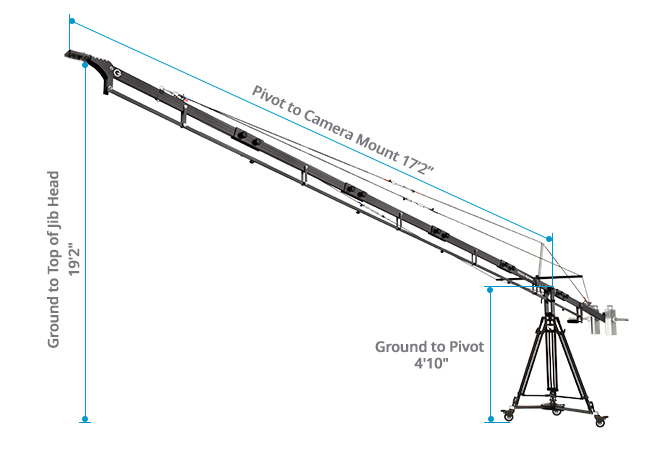

Proaim Alphabet 21ft Jib Crane, for DSLR Video Camera, 15kg/33lb

For 3-Axis Gimbals, Pan Tilts & Fluid Heads

CAD 959.00 - CAD 959.00

CAD 959.00

CAD 959.00 - CAD 959.00

CAD 959.00

SKU : P-A21-J

Qty

CLICK To Discover All Scissor Cranes!

Proaim Alphabet 21ft Jib Crane, For DSLR Video Camera, 15kg/33lb

01.

PROFESSIONAL. STRONG. LIGHT. SMOOTH.
Proaim Alphabet is designed for videographers and filmmakers who need a lightweight and ultra-portable Crane system.
The Alphabet jib has many great features such as tool-less assembly, reinforced jib sections, variable lengths, tilt brake etc.
It allows capturing smooth, dynamic sweeping pans and camera rises.
The Jib has Universal front mounting to adapt Pan Tilt Heads and 3-Axis Gimbal Stabilizers.
High strength Aluminum construction with unbeatable stability holds camera setups up to 15kg / 33lb.

02.

ADAPTABLE LENGTHS
You can adjust the arm length from 12ft to 21ft by quickly adding or removing the jib sections.
The ability to change the length allows you to use the Crane in various scenarios.

03.

MOST AFFORDABLE JIB SOLUTION
Filmmakers often have to sacrifice quality for quantity when building their gear; the Proaim Alphabet eliminates that concern by providing an excellent jib solution at an economical price.

04.

SIMPLIFIED TRANSPORT
The Complete Crane System fits in bags for easy storage. These compact bags are easy to carry with you to different sets and locations.

IN-ACTION VIDEOS

SPECIFICATIONS

ALPHABET 21' JIB

Construction

Jib Arm - High-grade CNC Aluminum
Cable System - Stainless Steel

Load Capacity

up to 15kg / 33lb

Maximum Length

21' / 6.4 meter

Tilt Lock

Yes

Pan Lock

Yes

Panning Range

360°

Self-Balance

27kg / 59lb

PACKAGING INFO

Package Weight

35.400kg / 78.04lb

Box Dimensions

(LxWxH): 141 x 37 x 33 cm / 55.51 x 14.56 x 12.99 inch

BALANCING CHART

ALPHABET 21FT JIB

Length : 21ft
Camera Plate Length : 0.8ft
Length without Camera Plate : 20.6ft
Length with Camera Plate : 21.4ft (Complete Length)

Camera Weight	Without Camera	1kg	15kg
Counter Weight	28kg	(28+4.2)=32.2kg	91kg

ALPHABET 18FT JIB

Length :18ft
Camera Plate Length : 0.8ft
Length Without Camera Plate : 17.15ft
Length With Camera Plate : 17.95ft (Complete Length)

Camera Weight	Without Camera	1kg	15kg
Counter Weight	16kg	16+3.5=19.5kg	68.5kg

ALPHABET 15FT JIB

Length : 15ft
Camera Plate Length : 0.8ft
Length without Camera Plate : 13.72ft
Length with Camera Plate : 14.52ft (Complete Length)

Camera Weight	Without Camera	1kg	15kg
Counter Weight	7kg	(7+2.25)=9.25kg	41kg

ALPHABET 12FT JIB

Length: 12ft
Camera Plate Length : 0.8ft
Length without Camera Plate : 10.3ft
Length with Camera Plate : 11.1ft (Complete Length)

Camera Weight	Without Camera	1kg	15kg
Counter Weight	No need counter weight , it is balanced with weight rod whose weight is 3.2kg	Weight Rod + 1.5 Kg	22.5kg

IN THE BOX

6 x Jib Sections
1 x Support Rod
1 x Cable Guide
1x Weight Rod with Weight Closer
8mm Male Female Knob Set
10mm Female Knob
3/8" Male Knob
Handle
1 x (Red) 11ft
1 x (Red) 6.7ft
1 x (Red) 3.3ft
2 x (Blue) 11ft
2 x (Blue) 6.7ft
2 x (Blue) 3.3ft

USER MANUAL

Proaim Alphabet 21ft Jib Crane

ALPHABET 21' JIB AROUND THE WORLD

Proaim Alphabet 21ft Jib Crane, for DSLR Video Camera

Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products

Q&A

Ask a Question

How can I mount my Alphabet Jib on Proaim Toro Heavy-duty Mitchell Camera Tripod Stand (TP-TORO-01)?

Yes alphabet jib will compatible with Proaim Toro Heavy-duty Mitchell Camera Tripod Stand (TP-TORO-01), just need to recommend Proaim Mitchell Base to 100mm Bowl Adapter (BP-302-00).
Can I mount DJI RS3 on P-A21-J?

Yes, you can mount DJI RS3 on the Proaim Alphabet 21ft Jib Crane with the help of Proaim DJI-QR and P-QRG Quick Release systems.
What accessories required to mount DJI-RS2 gimbal on the Proaim Alphabet 21ft Jib Crane

To use the Dji RS2 gimbal with the Proaim Alphabet 21ft Jib Crane, you'll need the Proaim Quick Release Plate P-QRG and the Proaim DJI-QR mount.
Here are the links for your reference :
P-QRG - https://proaim.ca/products/proaim-quick-release-plate-for-hand-held-gimbals
DJI-QR- https://proaim.ca/products/flycam-quick-release-mount-for-ronin-m-mx
Can you hook up a DSLR on the proaim alphabet 21ft jib crane?

Yes, you can definitely mount a DSLR camera on the Proaim Alphabet 21ft Jib Crane. You can either directly mount the DSLR camera on the crane or with the help of a fluid Head.
If I will bye alphabet 21 crane with 3 axcis and after few months I can remove the dutch roll from the head and continue to work with 2 axcis head?

Yes, the Dutch roll can be removed from the Proaim Spin-3 head and the head can be converted to 2-Axis head.
Hello, is screen includes in the crane packages ?

The Proaim Camera Crane Packages does not include the monitors or screens.
How to mount Proaim alphabet 21ft jib crane with DJI RS2 ?

To mount DJI RS2 Gimbal with Proaim Alphabet 21ft Jib Crane, you require Flycam Quick Release Mount (SKU: DJI-QR) + Proaim Quick Release plate (SKU: P-QRG).
