Proaim 24ft Fraser Camera Jib Crane Package for Video Film Productions

Payload: 15kg / 33lb | With Gravity Stand and Anchor Dolly (PF-4TR)

Sold out
Original price CAD 2,295.00 - Original price CAD 2,295.00
Original price
CAD 2,295.00
CAD 2,295.00 - CAD 2,295.00
Current price CAD 2,295.00
SKU : JB-FR4T-02

Get Professional Cinematic Shots
With Durable Setup & Right Price!

01.

STURDY & CLEVER DESIGN

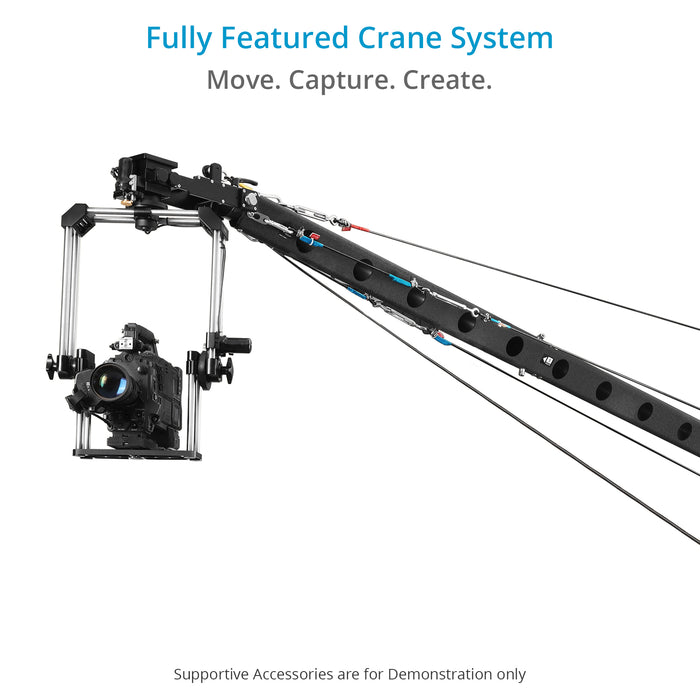

Proaim 24 feet Fraser Camera Jib is intelligently designed for your professional shooting requirements. It is a perfect filming solution, and you can use this Jib system for both lightweight & heavy duty setups & in either production, big or small.

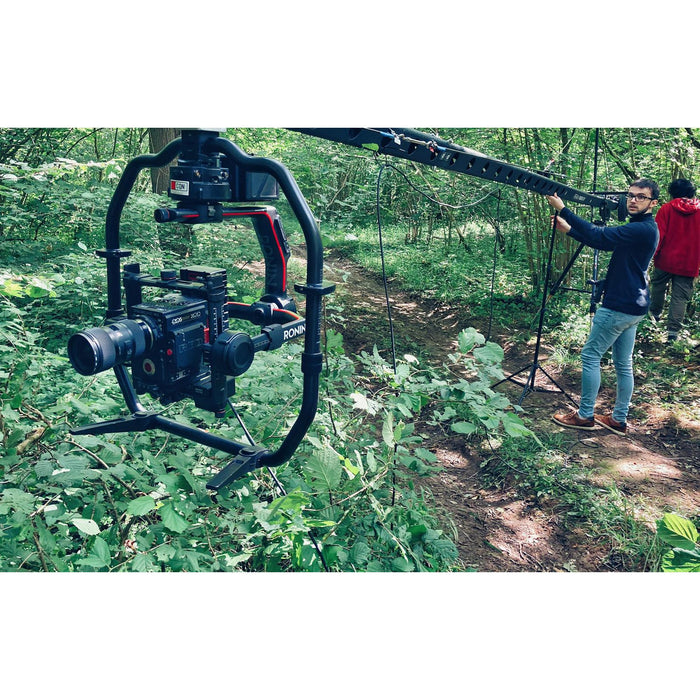

The Fraser jib supports the 3-Axis Camera Gimbals, Remote Pan Tilt Heads, Video Film & Broadcasting Cameras.
It is a perfect combination of high-quality material, technological expertise and superior design to offer outstanding performance.
Its lightweight design made of sturdy Aircraft Aluminum offers 4x strength with a payload capacity of up to 15kg / 33lb.
.

Proaim 24ft Fraser Camera Jib Crane Package for Video Film Productions
Proaim 24ft Fraser Camera Jib Crane Package for Video Film Productions

02.

MASSIVE ACCESSIBILITY & VERSATILITY

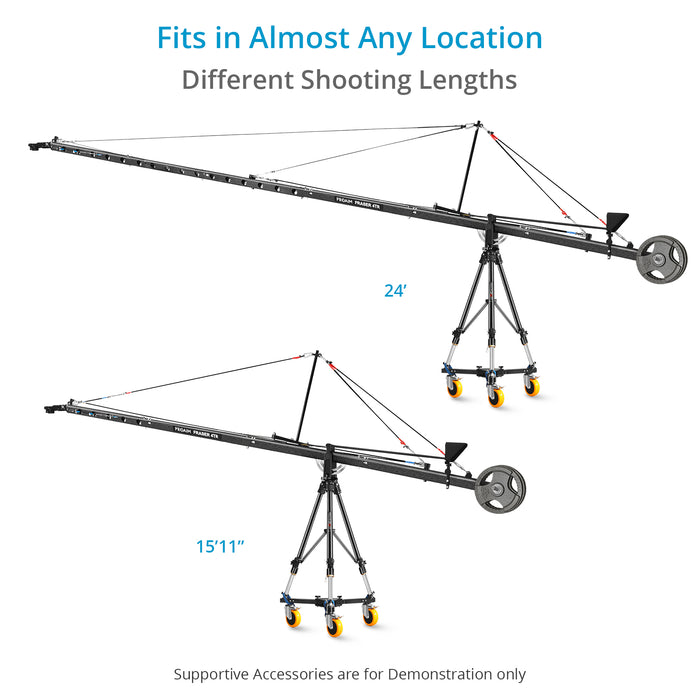

You can use Fraser Jib in two lengths, 24 feet &15.11 feet, as per your requirement.
It features 360-degree panning & 60-degree up/down tilting to provide you with a wide cinematic shot range.
The Six Sections of Crane connects with a dual lock system, which gives strength and eliminates the slack or shakes even at 24ft.

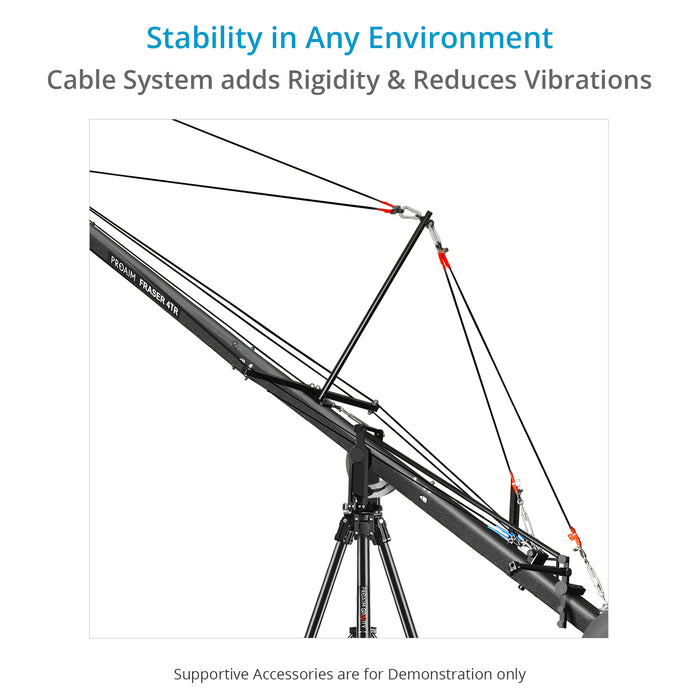

Cable System adds rigidity & stability to the Jib system, which reduces distortions in any shooting environment.

03.

SOLID FOUNDATION FOR FRASER CRANE

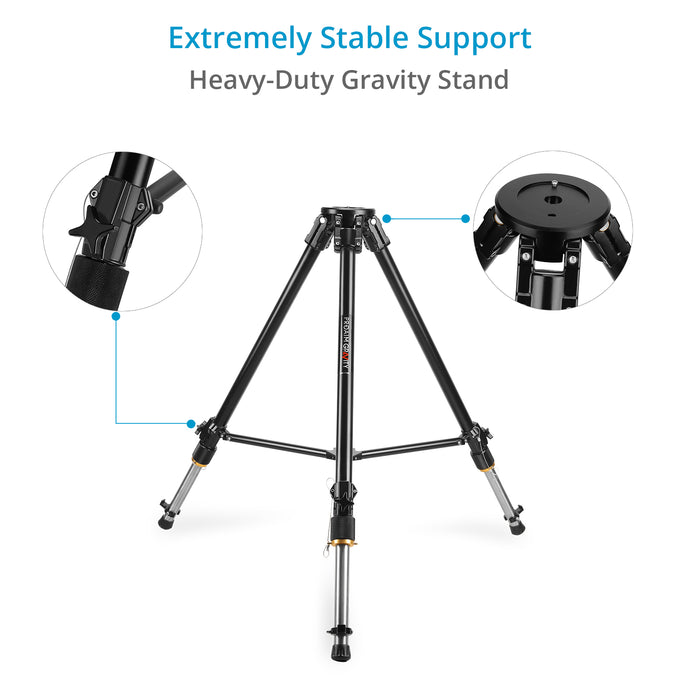

The Gravity Tripod Stand supports an incredible payload of up to 180kg/396lb and is highly stable in use.
The main features of Tripod are hi-strength, quick assembly/disassembly and a Micro-Balancing option for easy balancing.

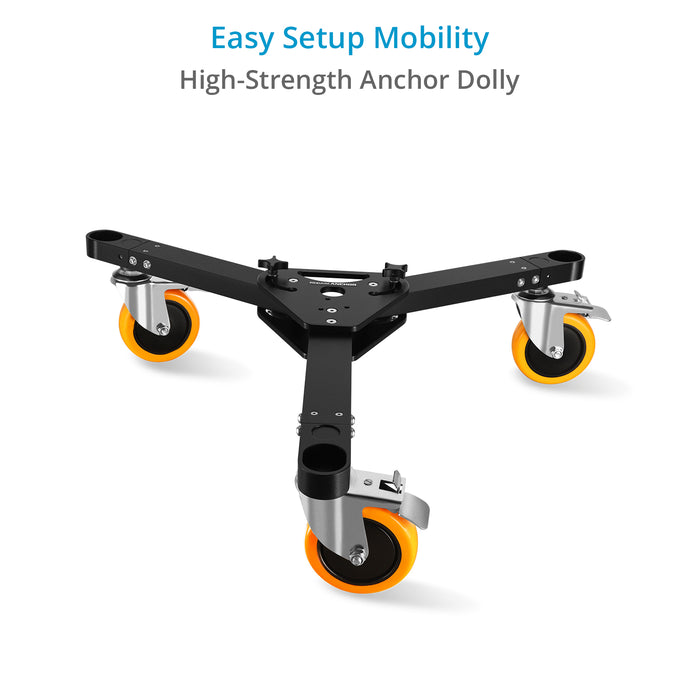

Heavy-duty Dolly gives movement to the Crane mounted on the Tripod and quickly takes payload up to 500kg/1100lb.
The main features of Dolly are to Secure Tripod feet, locking brakes, high-quality wheels and foldable design.
This excellent combination of Heavy-duty Jib Stand and Anchor Camera Dolly is sturdy enough to support the Crane when it's fully loaded and weighed.

Proaim 24ft Fraser Camera Jib Crane Package for Video Film Productions
Proaim 24ft Fraser Camera Jib Crane Package for Video Film Productions

04.

FAST ASSEMBLY & SIMPLE TRANSPORTATION
The Fraser Jib system is easy to assemble & disassemble.
The cables with colour coding save the operator hours of setup and teardown time.
The Jib Arm Section's dual locking system strengthens the Crane System making it more durable.
Proaim 24ft Fraser Jib is collapsible and travel-friendly.

05.

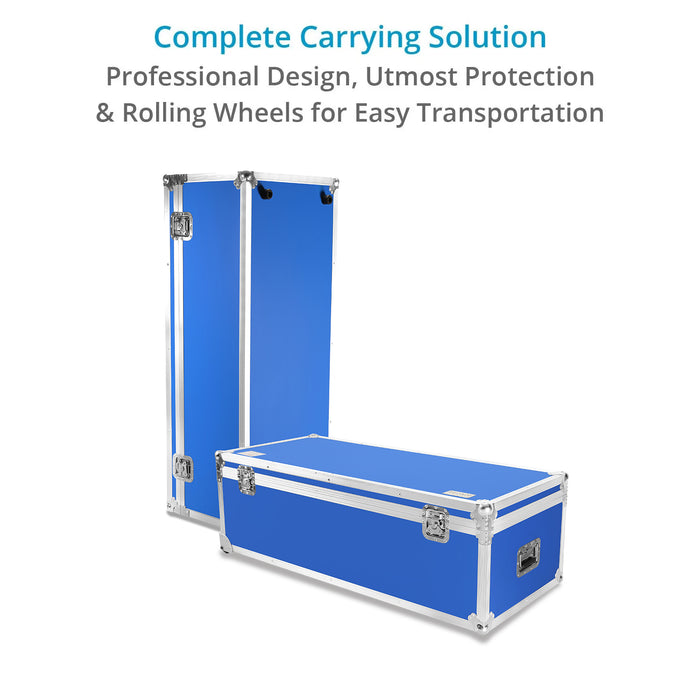

COMPLETE CARRYING SOLUTION
Proaim provides you with extremely strong & durable flight cases for your Fraser Jib Crane to give the utmost protection.
This Professional design ultimately secures your gear while travelling & the rolling wheels give you more convenience.

Proaim 24ft Fraser Camera Jib Crane Package for Video Film Productions

IN-ACTION VIDEOS

SPECIFICATIONS

JIB ARM

Construction

  High-Grade Aluminum HE30

Weighing Capacity

  up to 15kg / 33lb

Jib Arm

  Reach: 7 meter / 19.6 feet
  Sections: 6
  Jib Section's Wall Thickness: 3.5mm

Finish

  Black Powder Coated

Pan & Tilt Range

  Pan: 360°
  Tilt: ±60°

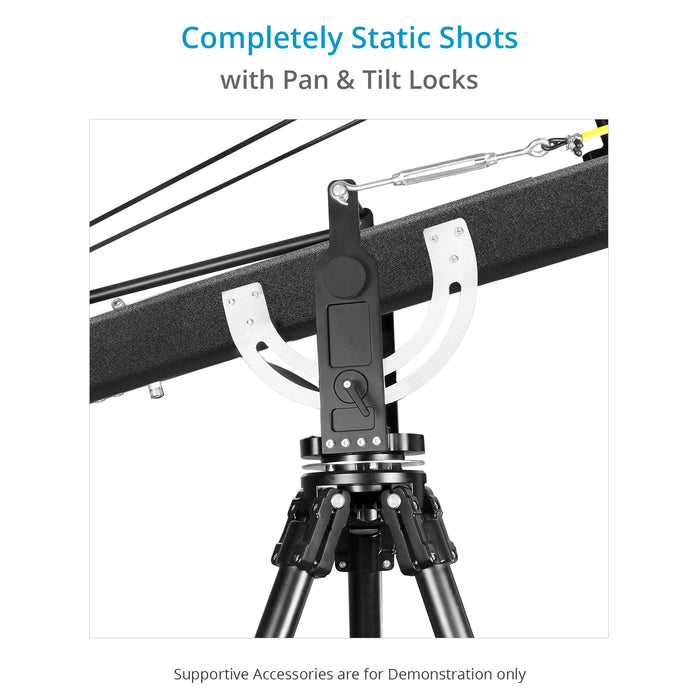

Crane Lock

  Pan: Yes
  Tilt: Yes

TRIPOD STAND

Construction

  High-Grade Aluminum

Weight Capacity

  On Minimum Height: up to 250 kg / 550 lb
  On Maximum Height: up to 180 kg / 396 lb

Height

  Maximum: 47 inches / 4 feet
  Minimum: 32 inches / 2.7 feet

Pipe Diameter

  42mm

Micro Adjustment

  Yes

Folded Dimensions

  37 inches / 3 feet

Product Weight

  11.32 kg / 25 lb

ANCHOR DOLLY

Construction

  High-grade CNC Aluminum

Payload

  up to 500 kg / 1100 lb

Tripod Foot Compatibility

Proaim 24ft Fraser Camera Jib Crane Package for Video Film Productions

Folded Length

Wheels

  Diameter: 6"
  Material: PU
  Wheel Lock: Yes

Dimensions

Proaim 24ft Fraser Camera Jib Crane Package for Video Film Productions

Product Weight

  13 kg / 29 lb

PACKAGING INFO

Jib Sections

  Volume Weight: 88 kg / 194 lb
  Net Weight: 65.4 kg / 144 lb

Stand, Dolly and Accessories

  Volume Weight: 74 kg / 163 lb
  Net Weight: 60.8 kg / 134 lb

IN THE BOX

Jib Sections

Proaim 24ft Fraser Camera Jib Crane Package for Video Film Productions

Jib Stand

Proaim 24ft Fraser Camera Jib Crane Package for Video Film Productions

Supports Rods

Proaim 24ft Fraser Camera Jib Crane Package

Jib Knobs

Proaim 24ft Fraser Camera Jib Crane Package for Video Film Productions

Dolly

Proaim 24ft Fraser Camera Jib Crane Package for Video Film Productions

Cables With Length & Quantity

Proaim 24ft Fraser Camera Jib Crane Package for Video Film Productions

Hard Case

Proaim 24ft Fraser Camera Jib Crane Package for Video Film Productions

delivery

Guaranteed Fast Delivery
For all orders

easy returns

Quick and Efficient
Customer service

easy returns

Easy Returns
Up to 30 days

warranty

1-Year Warranty
On All Products





  • Can I mount the Proaim Junior and Senior Pan Tilt Head on Proaim 24ft Fraser Camera Jib Crane?

    Yes, both the Proaim Junior and Proaim Senior Pan tilt heads can be mounted on a Proaim 24ft Fraser Crane with the help of Proaim Quick Release 4TR Gimbal Mount (QR-R4TR).

  • Does the Fraser have a larger truss than the Breeze ?

    The truss of both the Proaim Fraser Jib Crane and the Proaim Breeze jib crane are the same.

  • How to shorten the crane to 12\', please share the list of cables and instructions to make that happen

    You can reduce the Proaim 24ft Fraser Camera Jib Crane JB-FR4T-02 length to 15.11ft by removing the 4th and 5th sections of the Jib Here is the image for your reference: https://prnt.sc/YHXUgtrzqWH2

  • Hello, is screen includes in the crane packages ?

    The Proaim Camera Crane Packages does not include the monitors or screens.
