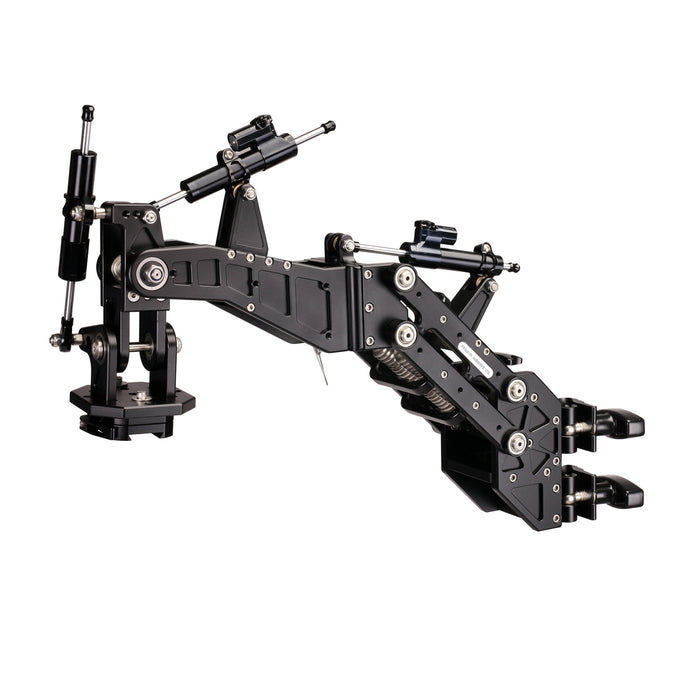

Proaim Airwave V15 Camera Vibration Isolator Arm (15-50kg/33-110lb)

For 3-Axis Ronin/Movi Gimbals & Stabilized Heads

CAD 2,909.00 - CAD 2,909.00

CAD 2,909.00

CAD 2,909.00 - CAD 2,909.00

CAD 2,909.00

SKU : VI-ARWV-15

Qty

CLICK to Discover Our Complete Shock Absorbing Range!

Don't Miss Out on the Action!

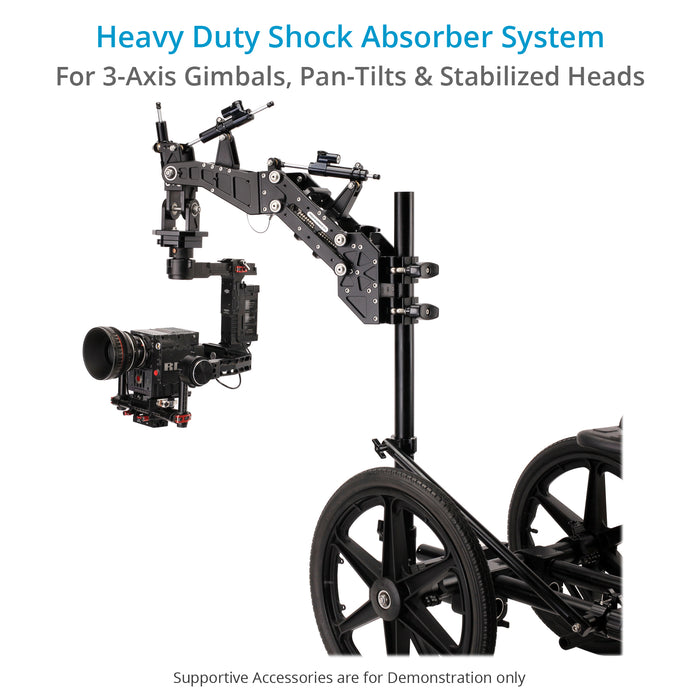

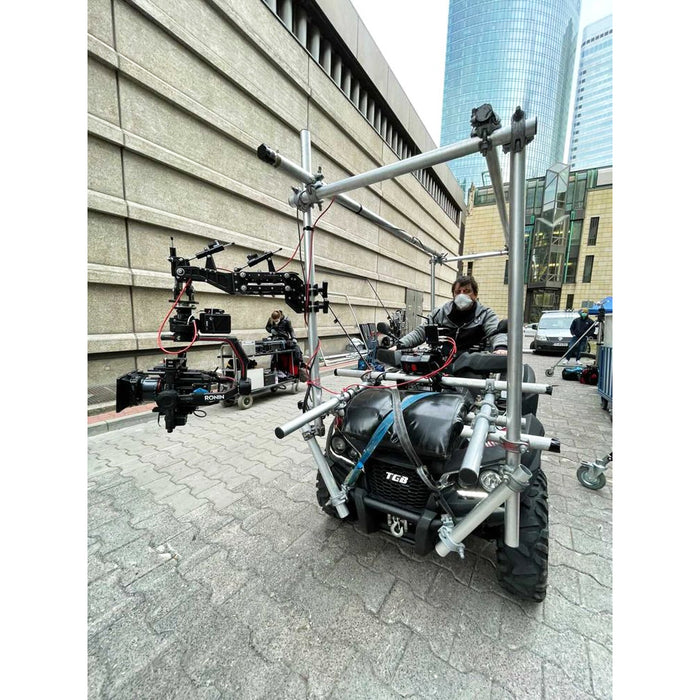

Mount the Proaim Airwave Arm onto any Moving Platform and Curate a Perfect Action or Chase Sequence.

Super Smooth Footage

Cut Down Vibrations and other Noise from your Shot!

Compatible with All Gimbal Systems

The Arm ensures a secure attachment of Ronin, Movi, Tilta or any other Gimbal System presently on the market!

Calibrate to Your Needs

Adjustable Springs and Dampers help you adjust your Airwave Arm precisely to your setup.

See how the Airwave V15 Works

Arm Specifications

Construction

Commercial-grade Aluminum

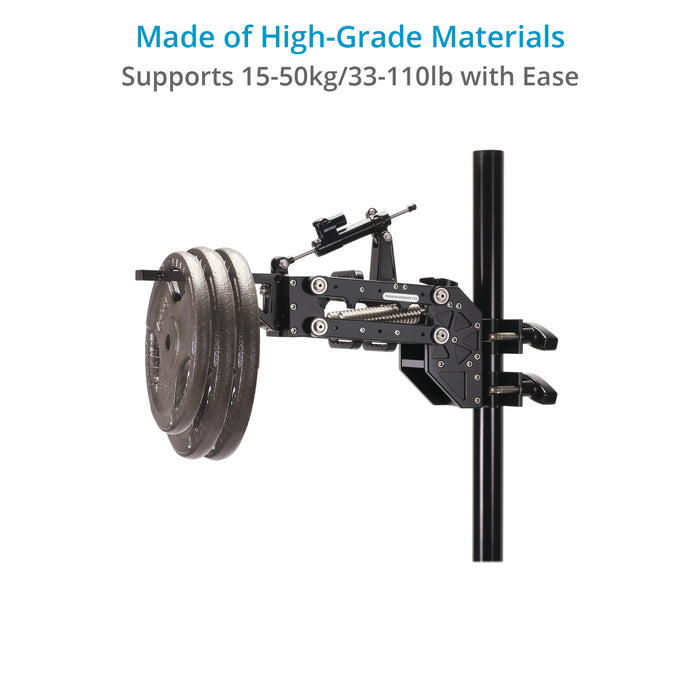

Arm Payload

15-50kg/33-110lb

Connectivity

Connects to 38-65mm Scaffold Pole

Dimensions of Arm

Lift range

24"

Temperature Range

-20° to +50°

Product Weight

10.91kg/24lb

Product Weight with Flight Case

28.5kg/62.8lb

Dimensions of Flight Case (Without Packing) LxWxH

58cm x 55cm x 30cm

In the Box

Airwave V15 Camera Vibration Isolator Arm
Ronin Plate (DJI-QR)
Nose Plate
L Plate
Flight Case

User Manual

Proaim Airwave V15 Camera Vibration Isolator Arm

01.

Airwave V15 Arm: Get the Most Stable Shots from Moving Platforms!

Proaim Airwave V15 Camera Vibration Isolator Arm spawned from the idea of making the most versatile isolator system while still being affordable.

The V15 Arm works in conjunction with the Gimbal and assists in Removing High-Frequency Vibrations and Damping Low-Frequency Oscillations.

The Dual Spring configuration of the V15 absorbs all excessive shocks, jerks from a fast-moving vehicle or uneven terrain while the custom dampers dampen the movement of the Arm and only transfer a softer and smoother range of vibrations to the Gimbal.

02.

Integrated Roll and Tilt Damper System

The V15 has an integrated Roll and Tilt Dampening System that smoothens the sudden jerks, vibrations and the movement caused by taking a sharp turn or sudden acceleration and deacceleration. This results in extraordinarily natural, stable and smooth video output.

03.

Ultimate Damping, Peak Shock Absorption, Lifting Capacity and Stability

We have spent countless hours in perfecting the shock absorption and damping action of the Arm to suit varied types of setups you may want to use with the Arm.

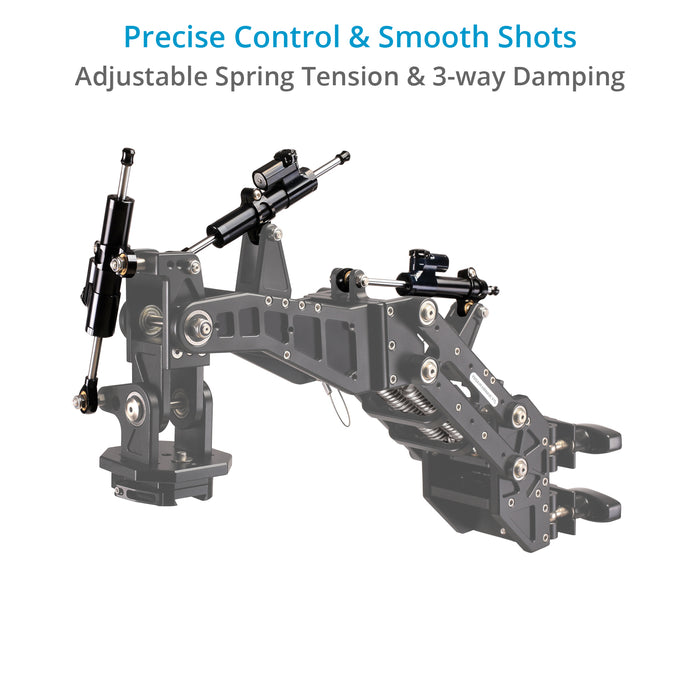

The backbone of the V15 Arm is the Dual Stainless-Steel Springs and Custom Actuator Hydraulic Dampers.

The spring tension can be easily adjusted with the help of the included Allen Key, and it'll perform optimally throughout its range of motion for all kinds of loads..

The damping action of all axes, vertical, tilt and roll depending on the load placed on the Arm and how fast you plan on going. The damping can be adjusted with a knob that has 22 steps, to precisely dial in the exact amount of damping you need for your shot.

04.

Quick, Easy and Reliable Setup

Mounting a Camera Setup reliably to a Moving Platform can require lots of additional grip and rigging. It takes time and doesn't guarantee that the output would be completely smooth.

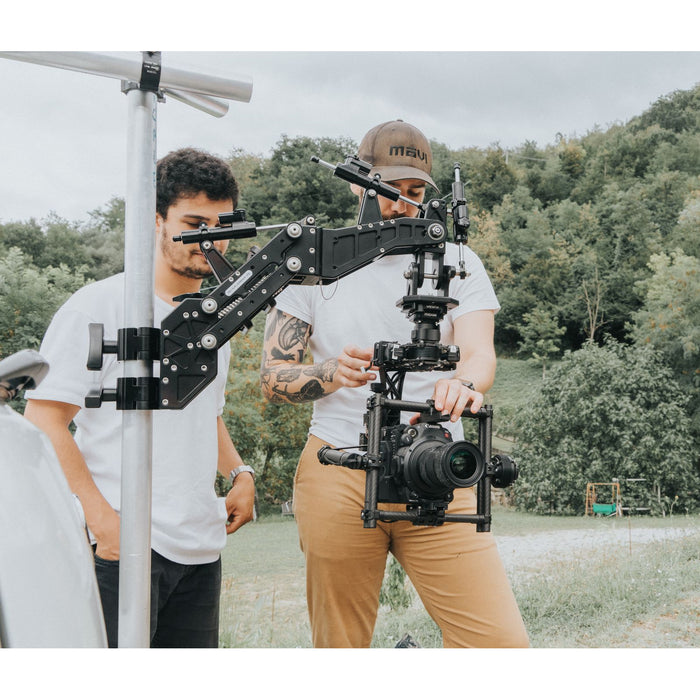

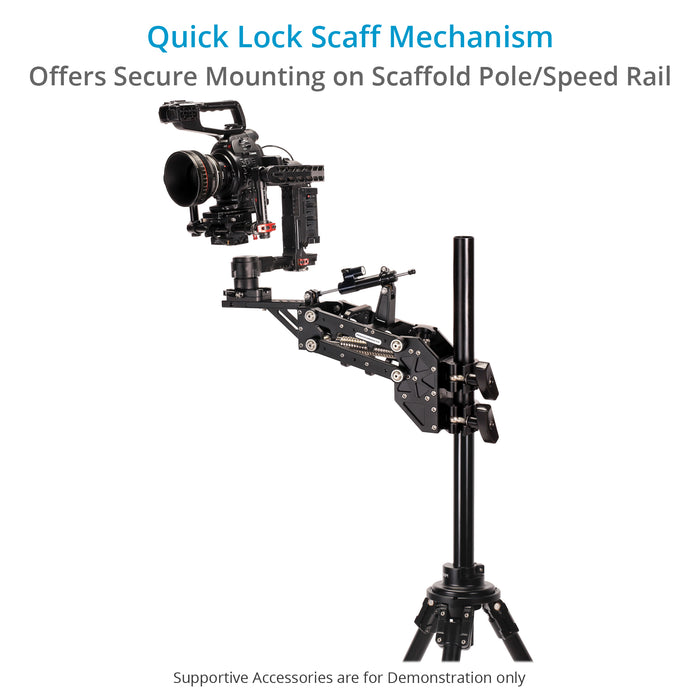

The Airwave V15 Arm can be securely attached to any Scaffold Pole or Speed Rail with a quick-lock Scaff Mechanism which is extremely robust and stable.

The V15 Arm can be configured in low mount, underslung and over slung mount to capture the best perspective.

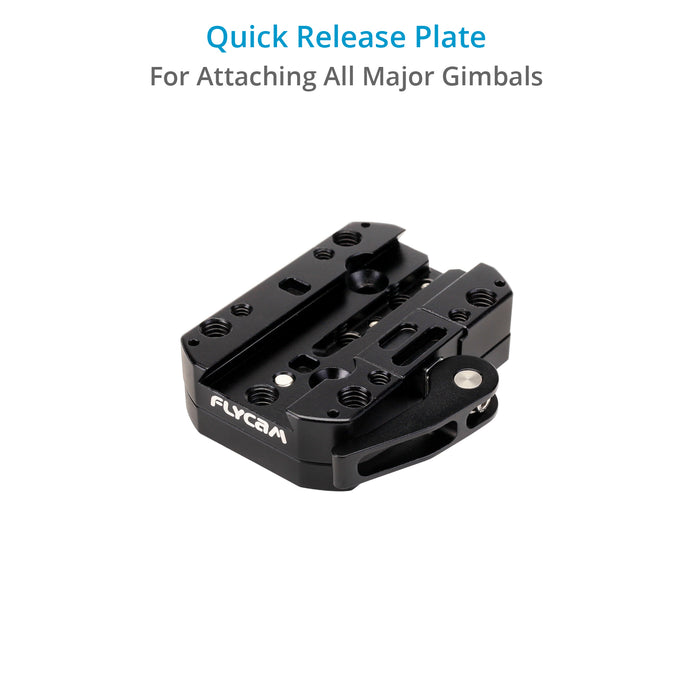

You can mount the Ronin M/MX directly to the Arm with the use of Ronin Quick Release provided with the Airwave V15. All other Major Gimbal Systems can be installed similarly by the use of a Quick Release plate available on our website.

05.

Protect your Gimbal, Increase its Life

If you hard-mount a gimbal setup to a moving platform, any jerky movement creates an enormous amount of stress on the Motors and Bearings of the Gimbal as it tries to stabilize the camera.

High-Frequency Vibrations created by moving parts such as motors, rotor blades or propellers and Low-Frequency Oscillations such as the sudden changes in direction, are all absorbed by the Arm's Springs and Dampers. It reduces the stress on your gimbal motors that now have to work only to stabilize a softened range of vibrations which in turn increases the life of your Gimbal.

06.

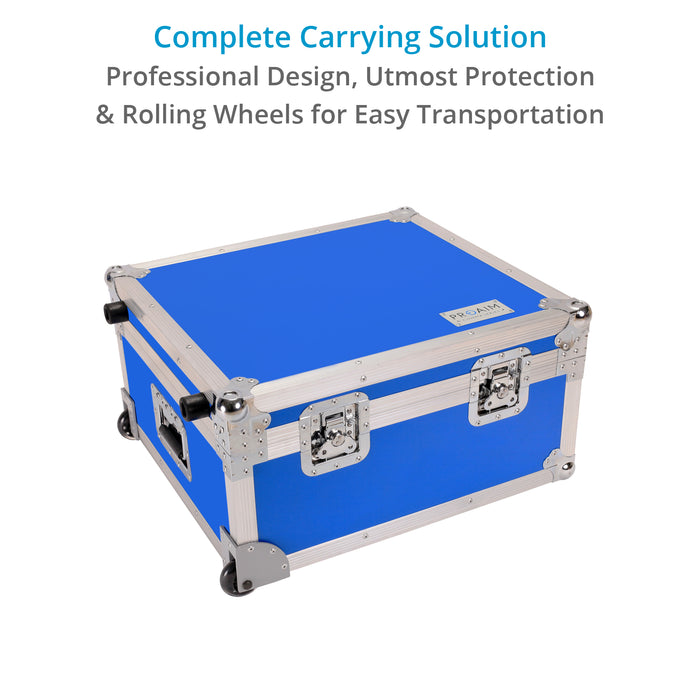

Compact and Safe Flight Case

The Proaim Airwave V15 Shock Absorbing Arm comes complete with a rolling Flight case with custom foam inserts to ensure complete protection for the Arm. The compact flight case is easy to carry with you to different sets and locations.

Why the Proaim Airwave V15 Arm would be the Best Choice

Price

There is no other product in the market with this many features even close to this price range. We offer Value for Money!

Stainless-Steel Springs

Custom Made Stainless-Steel Springs that can withstand continuous shocks and vibrations over an extended period.

Custom Made Dampers

They are especially suited for this application.

Quickest Setup Time

One-Man Assembly!

Versatility

Adapt it to any Camera + Gimbal Setup ranging from 15kg to 50kgs, and it'll function precisely the way you need it.

AIRWAVE V15 AROUND THE WORLD

Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products

Q&A

Ask a Question

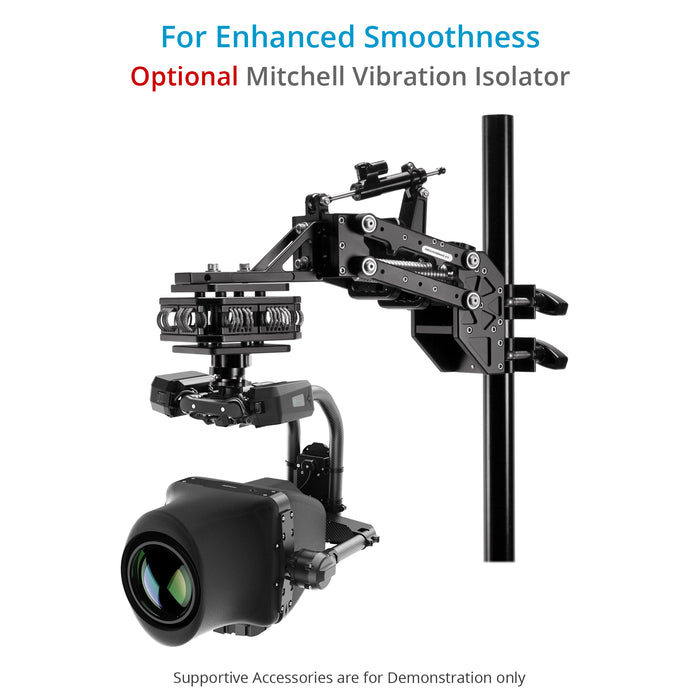

Can I attach Glide vibration isolator with Airwave v15 ?

Yes, the Proaim Glide 4-Dimensional Vibration Isolator can be attached with the Proaim Airwave V15 isolator arm.
Am I able to connect movii XL to this proaim v 15 arm? If not what adapter do I need ?

Yes, Movii XL can be connected with Proaim Airwave v15 arm with the help of P-GMP-01 & QR-MOVIÂ accessories.
