Flycam Zest Pro Video Camera Stabilizer with Power Connections | V-Mount

Payload: 5-15kg / 11-33lb | for Video & Film Cameras

CAD 647.00 - CAD 647.00

CAD 647.00

CAD 647.00 - CAD 647.00

CAD 647.00

SKU : ST-ZEST-PRO-02

Qty

THE EVOLUTION CONTINUES

Guarantees Perfect Workflow in a Future-Proof & Modular Design!

01.

MOST ADAPTABLE STABILIZER SYSTEM
Professional Handheld Stabilizer quickly adapts industry-standard cameras & accessories.
Designed For HD Broadcast, Feature Film & All Demanding Camera Stabilization Needs.
It's a strong yet lightweight gear that will successfully operate for years to come.
High-quality material construction makes it highly compatible with camera setups ranging within 5-15kg/11-33lb.

Flycam Zest Pro Electronic Video Camera Stabilizer | Gold Mount / V-Mount

02.

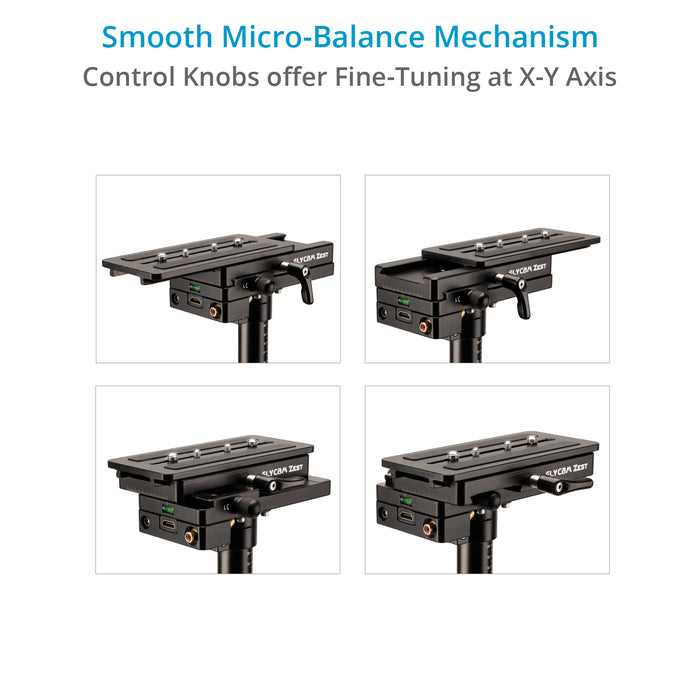

EASY BALANCING WITH MICRO-BALANCE MECHANISM

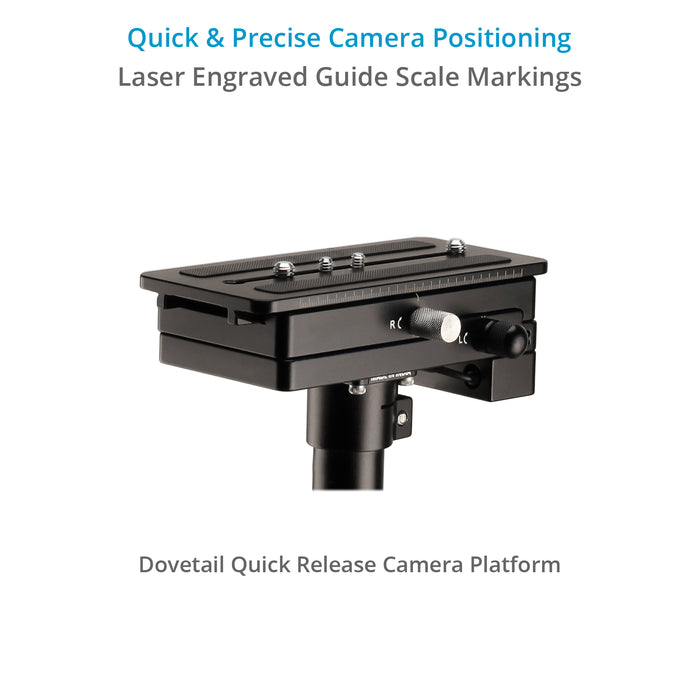

The camera platform with a micro-balance system helps to adjust the horizontal balance precisely & quickly. The Knurled knobs allow front-to-back and side-to-side adjustments. It has two bubble levellers for easy levelling.

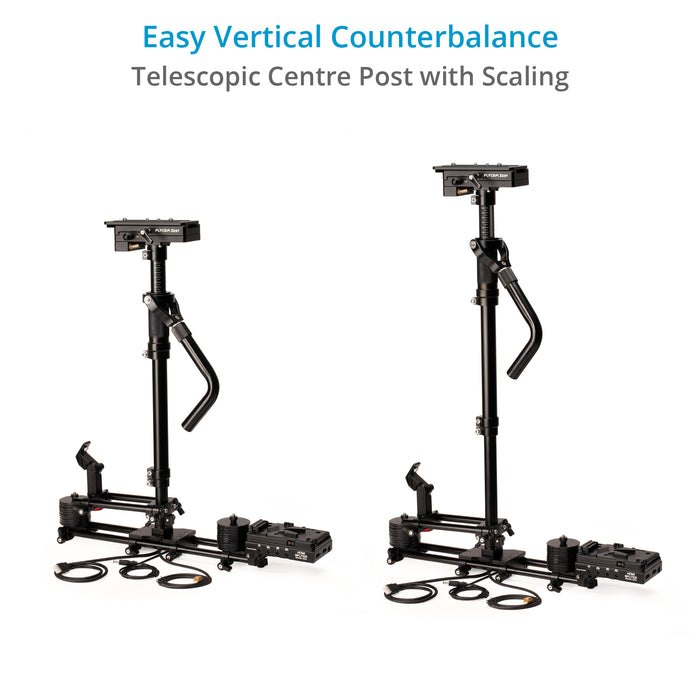

Telescopic center post with laser engraved guide scale markings offer quick & precise adjustments and helps in vertical balancing.

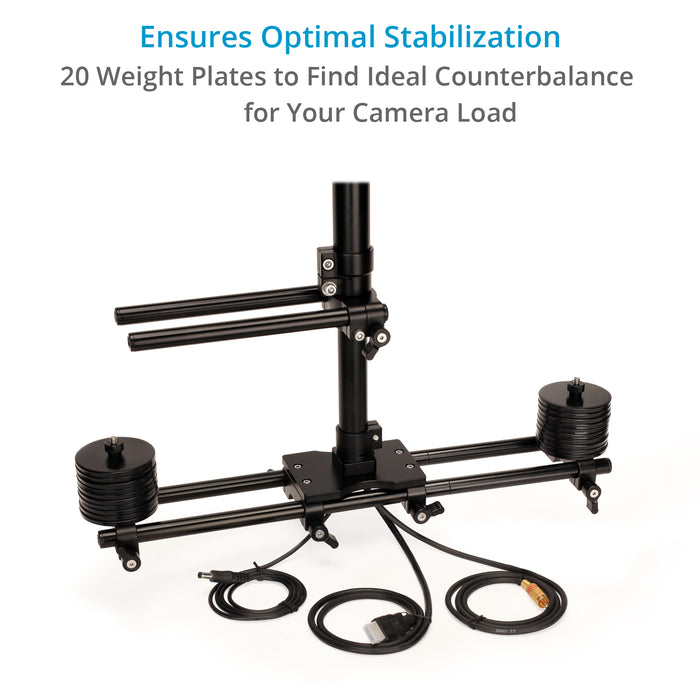

The Adjustable Base Platform with weight discs allows you to achieve perfect dynamic balance.

03.

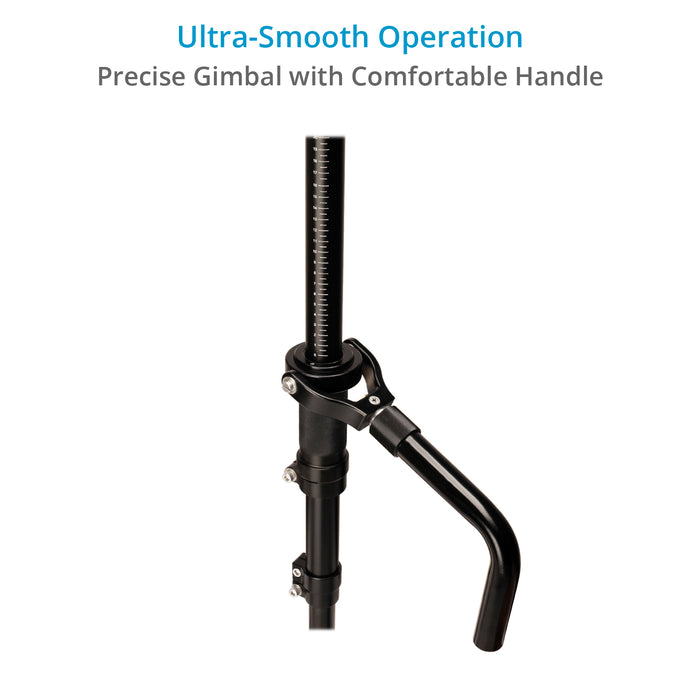

PRECISE GIMBAL WITH COMFORTABLE HANDLE
Precisely Balanced 3-axis gimbal with ball bearings allows ultra-smooth operation.

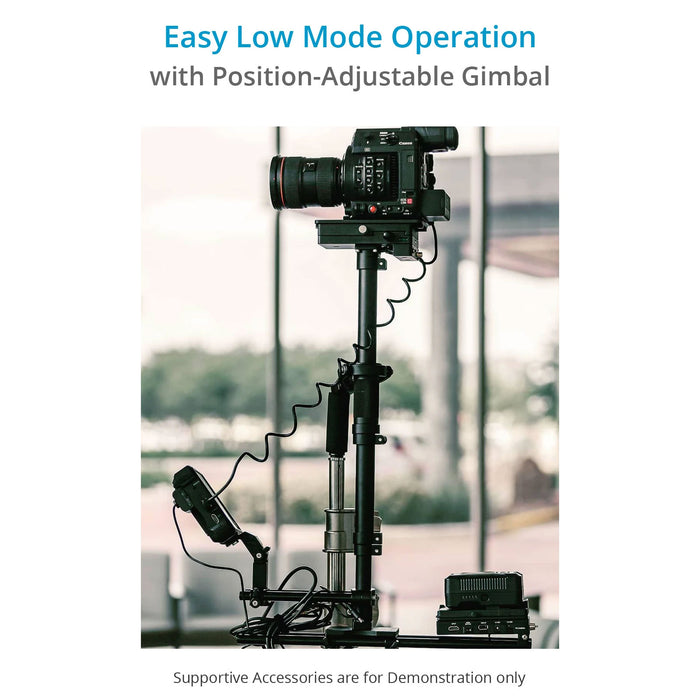

Position-adjustable knurled grip allows easy and secure low mode operation.
The New Designed Handle ensures better holding and swiveling, resulting in high standard workflow efficiency.

04.

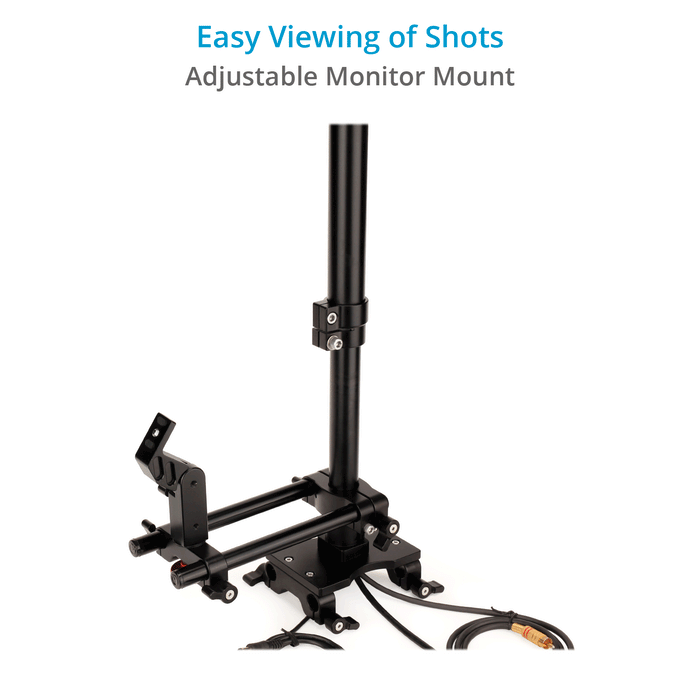

MONITOR MOUNTING
You can easily attach the monitor mount on either 200mm or 450mm rods, as your need requires. The 200mm rod system has height adjustment capability, so you can position it wherever you need on the central post.
The unique pivot mechanism of the monitor clamp enables 360° rotation and angle adjustment for more convenience.

05.

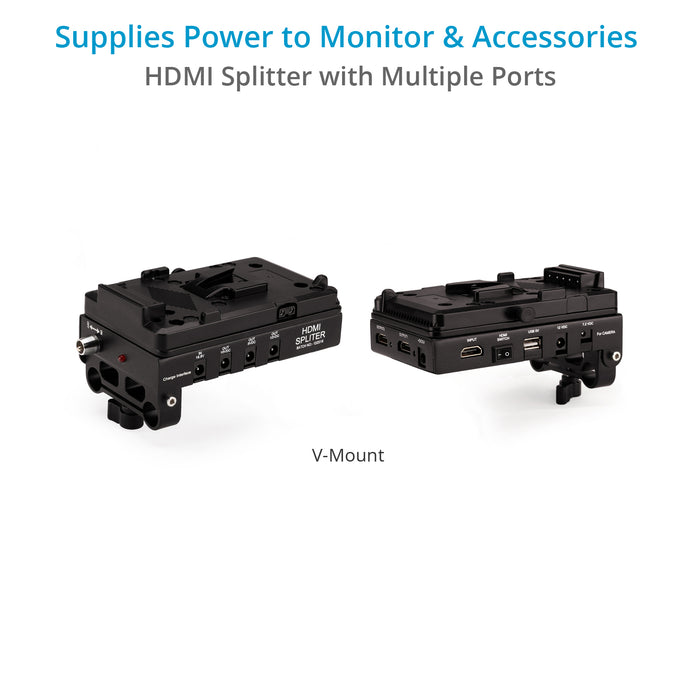

HDMI SPLITTER
HDMI Splitter with battery plate features multiple output ports. It supplies power to LCD monitor or other accessories.
The Splitter uses high-class electronic components and easily fits 15mm rods.

06.

USER-FRIENDLY DESIGN FOR EASY OPERATION
Flycam Zest Pro lets you enjoy the freedom of handheld shooting. It allows you to shoot even while going to extremes like running up and down stairs or travelling over rugged terrain.
Simple design makes it highly convenient and easy to use. It comes in a foam padded bag packing to easily carry around.

IN-ACTION VIDEOS

ZEST PRO STABILIZER SPECIFICATIONS

Construction

High-grade CNC Aluminum

Load Capacity

5-15 kg / 11-33 lb

Head Dimensions

X, Y Axis: 8 x 17cm with Lever

Camera Mounting

¼”-20 & 3/8”-16 Screws

Central Post

Main Post Diameter: Ø30 mm
Telescopic Post Diameter: Ø25 mm
Height Range: 62-100 cm / 24-39 inches

Counter Weights

Number of Counterweight Plates: 20pcs
Total Weight of 20 Plates: 2.5 kg / 5.5 lb
Weight of Each Plate: 0.125 kg / 0.27 lb

Base Platform

Rods Diameter: 15mm
Rod Lengths: 200mm & 450mm

HDMI Splitter

Output Ports: 1 x 15V, 1 x 12V, 1 x 7.2V and 1 x 5V

Product Weight (without Packing)

7.36 kg / 16.2 lb

Product Weight (with Packing)

9.94 kg / 21.91 lb

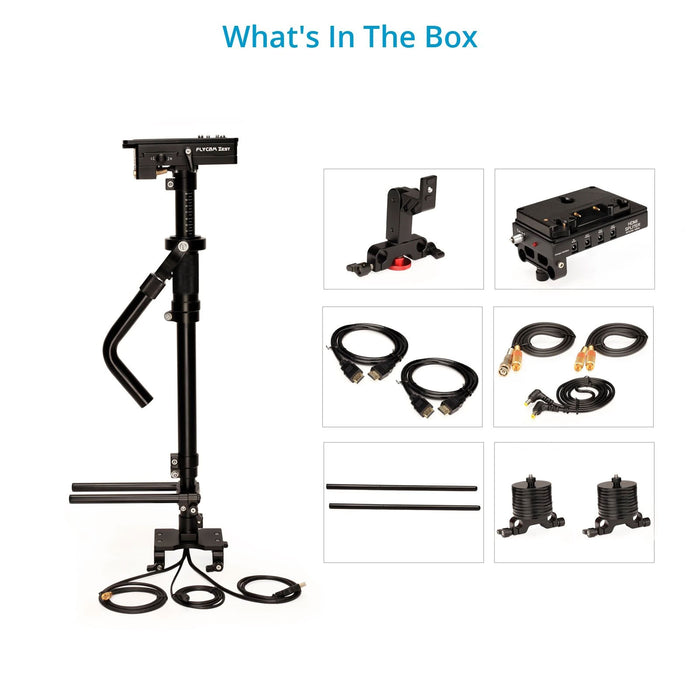

IN THE BOX

Flycam Zest Pro Telescopic center post
Battery Plate: V-Mount
Weight Plates: 20pcs
Monitor Mount
2 x 200mm Inbuilt Monitor rods
Weight Rods: 2 x 300mm Male Rods
2 x 150mm Female Rods
HDMI/SDI/ DC Power Cables (In-built)
Extra Cables:DC Power
HDMI male to male
RC to RC male
RC male to BNC male cable
2 x RC Female to BNC male Connector

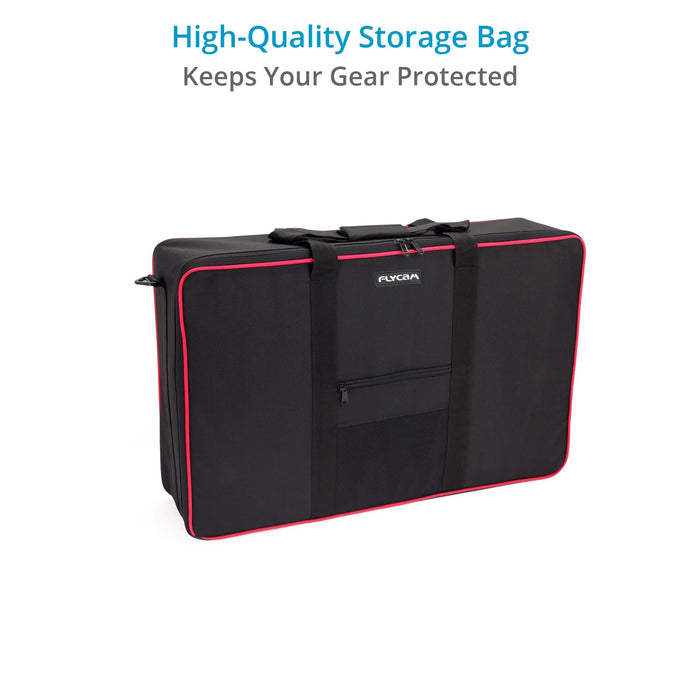

Storage Bag

USER MANUAL

Flycam Zest Pro Electronic Video Camera Stabilizer | V-Mount

Guaranteed Fast Delivery
For all orders

Quick and Efficient
Customer service

Easy Returns
Up to 30 days

1-Year Warranty
On All Products

Q&A

Ask a Question

Can you tell me if the camera plate on the Zest Pro can be removed? What fittings are there? 1/4 20?

yes camera plate can be removed from the pole, You need to pull the knob on the camera platform and remove the quick-release plate.
we provide fitting screws of 1/4" and 3/8"

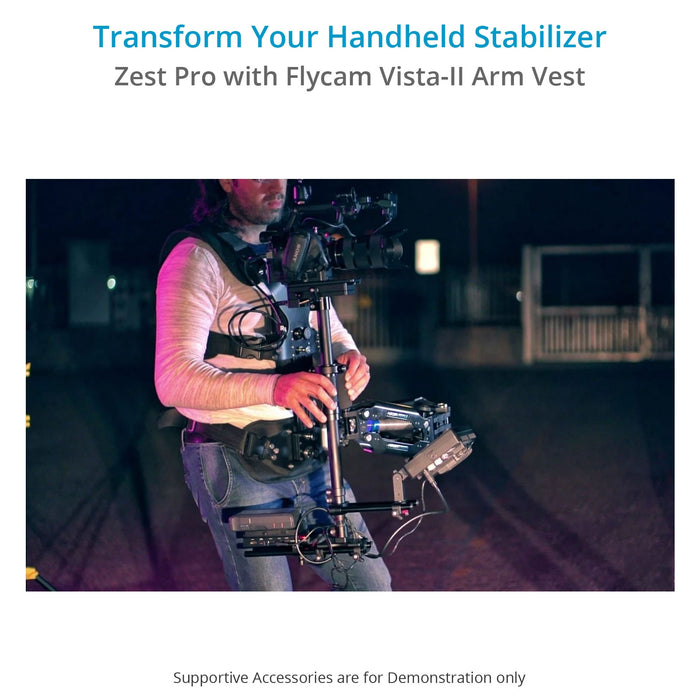

Is this set compatible with any other existing vest and arm?

The Flycam Zest Pro Camera Stabilizer is compatible with our Proaim Vista-II Arm & Vest (VSTA-II-AV). Here is the link to the product:
https://www.proaim.ca/products/flycam-vista-ii-stabilizing-arm-vest
What battery is needed for the Gold mount?

You can use any Gold mount 12VDC battery with a Gold mount battery plate. (ref image: https://prnt.sc/DMs8HW5bfshL)
Does the HDMI connections from the top sled to the bottom sled support 4K or is it only 1080 HD?

The Proaim HDMI splitter box is compatible with 4K@30hz , so please give input to this splitter from camera through hdmi cable and can take 4K output video from splitter.
Can you use this stabilizer with a Galaxy vest and arm?

Yes, you can use the Flycam Zest Pro Stabilizer with the Flycam Galaxy Arm and Vest but in that case you can put maximum 2 kg camera load on it as the Flycam Galaxy Arm can hold payload upto 10kgs including stabilizer.
Hi , do you have zest pro gimbal with sdi connector?

Yes. This ZEST Pro Sled comes with 2 xS DI cable with connectors for the camera/monitor.

Customer Reviews

5.0 Based on 6 Reviews

5 ★

100%

6

4 ★

0%

0

3 ★

0%

0

2 ★

0%

0

1 ★

0%

0

Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

SG

03/02/2021

Sophie G.

An exeptional sled

I did not expect such a quality of manufacture. Everything is done to allow the user to balance the sled statically and dynamically. The gimbal is adjustable on the column allowing you to play on the height of the camera. You can obtain shots above the head of an actor or at the ground level if you overturn the sled (low mode). Being able to adjust this gimbal height is very appreciable. The Sled is wired in HDMI. I use it on a double arm Glidecam X-10 with a Zcam + remote HF camera and it is really VERY clean. No vibration in the picture. It is so well done that it can be modified to add SDI cabling. For the price this Sled is amazing.

Flycam Zest Pro Electronic Video Camera Stabilizer | Gold Mount / V-Mount

ST

03/02/2021

Shawn t.

Good quality

Like it very much :)

Flycam Zest Pro Electronic Video Camera Stabilizer | Gold Mount / V-Mount

JW

03/02/2021

Jae W.

Purchase with confident.

Great purchase for any upcoming filmmaker. The quality of the built is superb and the accessories included supports any rig you can manage to toss on top of the sled. I would recommend this product at any time.

Flycam Zest Pro Electronic Video Camera Stabilizer | Gold Mount / V-Mount

PG

02/11/2021

Pier G.

Excellent impression immediately

I am a Steadicam operator and I needed a lighter product to make my team use to learn and become familiar. Arrived yesterday I opened it and I immediately had the impression of a good product well assembled. Some precautions such as cables already inserted into the sled and with dedicated connectors under the plate as well as comfortable embellish the object. These days I will be doing more accurate tests but the impression is great. Well equipped and carry bag very versatile even if very economical. The 5 stars I put them because it immediately inspired me great enthusiasm and desire to �make it fly�. I hope the tests do not let me down. I will write again soon.

Flycam Zest Pro Electronic Video Camera Stabilizer | Gold Mount / V-Mount

JH

05/29/2017

Joseph H.

Perfect for BMPCC6K rigged out.

Perfect for my build!!

Flycam Zest Pro Electronic Video Camera Stabilizer | Gold Mount / V-Mount
